BLUESTAR General Nozzle 1/2", 3/4", 1", 1 1/4" - Hydro-Max Jetter
Applications Cleaning
Jets 1/2": 6R/1F
3/4": 8R/1F
1": 8R/1F
1 1/4": 8R/1F
Angles 1/2": 15°/25°
3/4": 15°/25°/0°
1": 15°/25°/0°
1 1/4": 15°/25°/0°

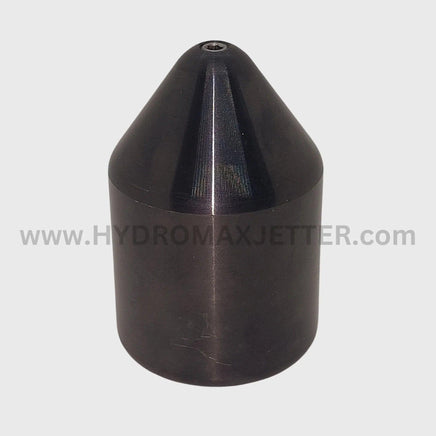

BLUESTAR General Nozzle 1/2", 3/4", 1", 1 1/4"

$373.00
SKU: 335-10180S
← Previous Product Next Product →

General Nozzle 1/2", 3/4", 1", 1 1/4"

The General Nozzle is built from wear-resistant tempered steel, making it a reliable choice for preventative maintenance and general sewer cleaning. It features one forward jet and an interchangeable blind plug, allowing for versatile cleaning in different applications.

Designed for maximum efficiency, this nozzle stands out with its optimized hydro mechanics and replaceable, threaded stainless steel inserts. Its dual 15° and 25° water jet angles provide strong traction, ensuring effective debris removal and smooth maneuverability.

Specifications:

1/2" Nozzle

  • Length: 2.8"
  • Diameter: 1.6"
  • Inserts:
    • R: 6x M6 ISK
    • FJ: M6 ISK
  • Water Jet Angles: 15° / 25°
  • Flow Rate: 10 - 25 GPM
  • Pipe Size: 6"-16"
  • Weight: 1.4 lbs

3/4" Nozzle

  • Length: 4.5"
  • Diameter: 3.6"
  • Inserts:
    • R: 8x M8
    • FJ: 1x M6 ISK
  • Water Jet Angles: 15° / 25° / 0°
  • Flow Rate: 35 - 60 GPM
  • Pipe Size: 6"-16"
  • Weight: 3.6 lbs

1" Nozzle

  • Length: 5.7"
  • Diameter: 3.0"
  • Inserts:
    • R: 8x M10
    • FJ: 1x M10 ISK
  • Water Jet Angles: 15° / 25° / 0°
  • Flow Rate: 50 - 80 GPM
  • Pipe Size: 6"-16"
  • Weight: 8.4 lbs

1 1/4" Nozzle

  • Length: 6.0"
  • Diameter: 3.2"
  • Inserts:
    • R: 8x M10
    • FJ: 1x M10 ISK
  • Water Jet Angles: 15° / 25° / 0°
  • Flow Rate: 80+ GPM
  • Pipe Size: 6"-16"
  • Weight: 9.0 lbs
Hose Connection Length Diameter Inserts Water Jet Angles Flow Rate (GPM) Pipe Weight
1/2" 2.8" 1.6" R: 6x M6 ISK/ FJ: M6 ISK 15°/25° 10 - 25 6"-16" 1.4 lbs
3/4" 4.5" 3.6" R: 8x M8/ FJ: lx M6 ISK 15°/25°/0° 35 - 60 6"-16" 3.6 lbs
1" 5.7" 3.0" R: 8x M1O/ FJ lx M1O ISK 15°/25°/0° 50 - 80 6"-16" 8.4 lbs
1 1/4" 6.0" 3.2" R: 8x M1O/ FJ: lx M1O ISK 15°/25°/0° 80 < 6"-16" 9.0 lbs.

Frequently Asked Questions

The General Nozzle is designed for preventative maintenance and everyday sewer cleaning. Its wear-resistant tempered steel construction ensures durability, while the combination of one forward jet and an interchangeable blind plug allows for versatility across different cleaning applications.

The General Nozzle features two optimized jet angles:
  • 15° Jets: Provide strong forward cutting force to break through debris.
  • 25° Jets: Ensure efficient pipe wall cleaning and traction.
This dual-angle setup enhances both cleaning power and movement through pipes.

Yes! The General Nozzle is designed with replaceable, threaded stainless steel inserts. This feature makes maintenance simple and cost-effective, ensuring long-term use without compromising performance.

The General Nozzle is available in multiple sizes to fit a variety of jetting setups:
  • 1/2" - Ideal for smaller pipe cleaning jobs.
  • 3/4" - Suited for mid-sized applications.
  • 1" - Designed for larger pipes and higher flow rates.
  • 1 1/4" - Best for heavy-duty sewer maintenance.
Be sure to select the right size based on your jetter specifications and pipe cleaning needs.

The General Nozzle includes an interchangeable blind plug, which allows users to adjust the nozzle's cleaning capabilities. By swapping out the blind plug, you can control the forward jet flow, optimizing the nozzle for different sewer cleaning applications.
