| Applications | Penetrating |
| Jets | 1/4": 4R/3F 1/2": 6R/4F 3/4": 8R/4F 1": 8R/4F |
| Angles | 1/4": 23°/15° 1/2": 23°/15°/0° 3/4": 23°/15°/0° 1": 23°/15°/0° |

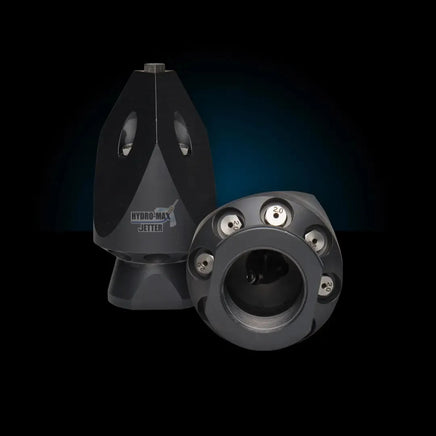

Arrow Nozzle 1/4", 1/2", 3/4", 1"
Our nozzles are precision engineered and manufactured from wear-resistant tempered steel, making them ideal for even the most difficult cleaning applications. With four concentrated forward jets and sharp cutting edges, our nozzles are able to quickly and effectively cut through even the toughest obstructions.

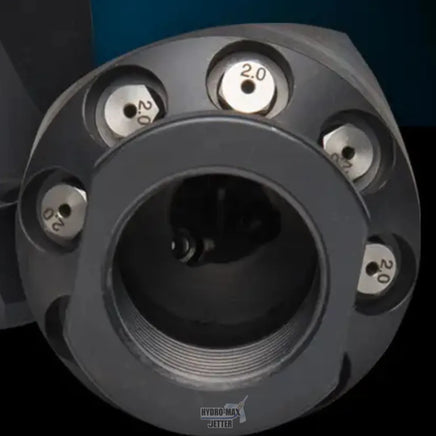

In addition, our nozzles feature replaceable, threaded stainless steel nozzle inserts for added durability. The rear water jet has an angle of 23°, while the forward and front water jets have angles of 0° and 15°, respectively.
Our nozzles are available in a range of sizes to fit 1/2" to 1 1/4" hoses, ensuring compatibility with a wide range of equipment. Whether you need to clear out a clogged drain or tackle a tough industrial cleaning job, the Arrow Nozzle has you covered. Order yours today!
Features:
| Hose Connection | Length | Diameter | Inserts | Water Jet Angles | Flow Rate (GPM) |
Pipe Ø |
Weight |
| 1/4" | 1.25" | .75" |
R: 4x drilled/ FJ: 3x drilled |
23°/15° | 6-10 | 2"-6" |
0.08 lbs. |
| 1/2" | 3.0" | 1.1" |
R: 6x drilled/ FJ: 3x M5 ISK/ 0°: M6 ISK |
23°/15°/0° | 10-25 | 3"-8" | 0.3 lbs. |
| 3/4" | 5.3" | 2.4" |
R: 8x M8 ASK/ FJ: 3x M8 ASK/ 0°: 1x M10 ASK |
23°/15°/0° | 35-60 | 6"-16" | 2.6 lbs. |
| 1" | 5.3" | 2.4" |
R: 8x M8 ASK/ FJ: 3x M8 ASK/ 0°: 1x M10 ASK |
23°/15°/0° | 50-80 | 6"-16" | 2.6 lbs |
