Applications | Penetrating |
Jets | 1/2": 6R/4F 3/4": 8R/4F 1": 8R/4F |
Angles | 1/2": 23°/15°/15° 3/4": 23°/15°/15° 1": 23°/15°/15° |

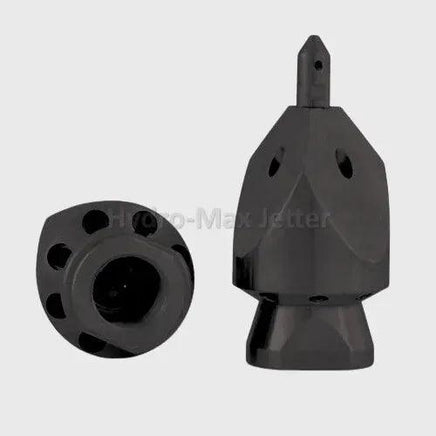

Arrow Nozzle With Drill Point
The Arrow Nozzle with Drill Point is designed for maximum cutting power and efficiency. Built from wear-resistant tempered steel, this nozzle tackles even the toughest obstructions in sewer and drain lines.
Equipped with a precision drill point, it cuts through hardened debris while three concentrated forward jets provide powerful penetration. Replaceable stainless steel inserts make maintenance simple, extending the nozzle’s lifespan for long-term performance.
Optimized Jetting Angles:
- Rear Jets (23°): Provides thrust & debris flushing.
- Forward Jets (0°): Breaks up obstructions head-on.
- Front Jets (15°): Enhances cutting action with drill point.
Why Choose This Nozzle?
Optimized for aggressive cutting. The drill point and jetting angles are specifically designed for tough obstructions that standard nozzles struggle with. Long-lasting performance. Built from wear-resistant steel with replaceable inserts for easy maintenance. Compatible with multiple setups. Available for 1/2" - 1 1/4" hose connections to fit various jetting systems.
Specifications
1/2" Nozzle
- Length: 3.0"
- Diameter: 1.1"
-
Inserts:
- R: 6x drilled
- FJ: 3x M5 ISK
- 0°: M6 ISK
- Water Jet Angles: 23° / 15° / 15°
- Flow Rate: 10-25 GPM
- Pipe Diameter: 3"-8"
- Weight: 0.3 lbs
3/4" Nozzle
- Length: 5.3"
- Diameter: 2.4"
-
Inserts:
- R: 8x M8 ASK
- FJ: 3x M8 ASK
- 0°: 1x M10 ASK
- Water Jet Angles: 23° / 15° / 15°
- Flow Rate: 35-60 GPM
- Pipe Diameter: 6"-16"
- Weight: 2.6 lbs
1" Nozzle
- Length: 5.3"
- Diameter: 2.4"
-
Inserts:
- R: 8x M8 ASK
- FJ: 3x M8 ASK
- 0°: 1x M10 ASK
- Water Jet Angles: 23° / 15° / 15°
- Flow Rate: 50-80 GPM
- Pipe Diameter: 6"-16"
- Weight: 2.6 lbs
Hose Connection | Length | Diameter | Inserts | Water Jet Angle | Flow Rate GPM |
Pipe Ø |
weight |
1/2" | 3.0" | 1.1" |
R: 6x drilled/ FJ: 3x M5 ISK/ 0°: M6 ISK |
23°/15°/15° | 10-25 | 3"-8" | 0.3 lbs |
3/4" | 5.3" | 2.4" |
R: 8x M8 ASK/ FJ: 3x M8 ASK/ 0°: 1x M10 ASK |
23°/15°/15° | 35-60 | 6"-16" | 2.6 lbs |
1" | 5.3" | 2.4" |
R: 8x M8 ASK/ FJ: 3x M8 ASK/ 0°: 1x M10 ASK |
23°/15°/15° | 50-80 | 6"-16" | 2.6 lbs |
